Product Description
- Your purchase includes – 10 ft. HR-100 gun | 10 ft. work cable with clamp | .030†contact tips | Power cord with plug | Welding guide and material thickness gauge | Owner’s manual with installation, operation and maintenance guidelines

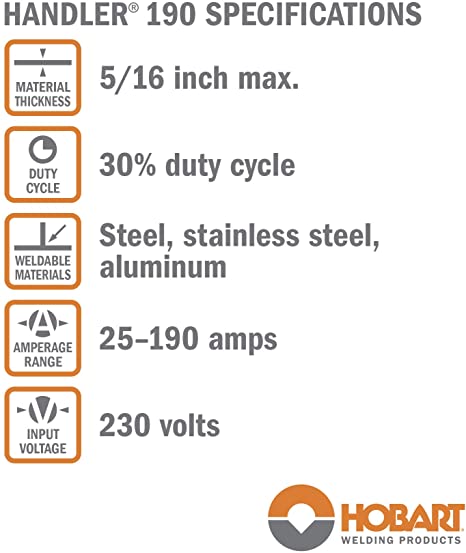

- Specifications: Input voltage – 230V 60Hz | Amp range – 25-190 amps | Duty cycle – 30% at 130 amps | Mild Steel thickness range – 24 ga. 5-/16†| Spool radio diameter inner/outer – .62â€/1.95†| Max spool capacity – 11 lbs. | Power cord length – 6 ft.

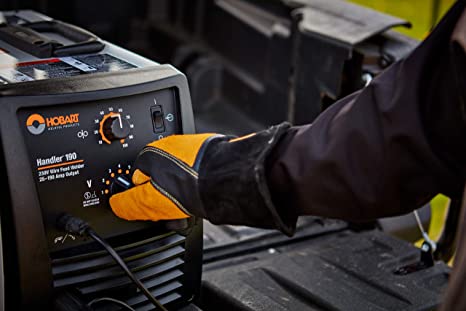

- 7 voltage selections, enhanced magnetics and infinite wire feed speed control offers easier fine control of the output parameters for improved arc performance with less spatter
- You are able to quickly reference initial settings for different wires, gases, materials, and thicknesses. Provides you a quick starting point whether you are a novice or professional

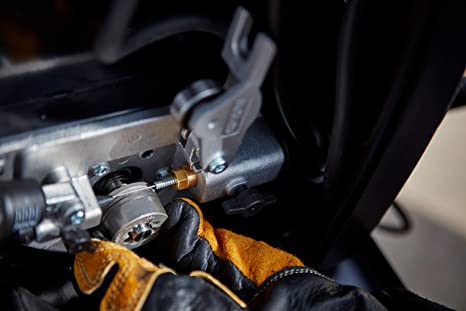

- Less of your time consumed in setup by offering three grooves – two for different size solid wire and a third for flux-cored wire | Protects power transformer from thermal overload to provide you maximum reliability
